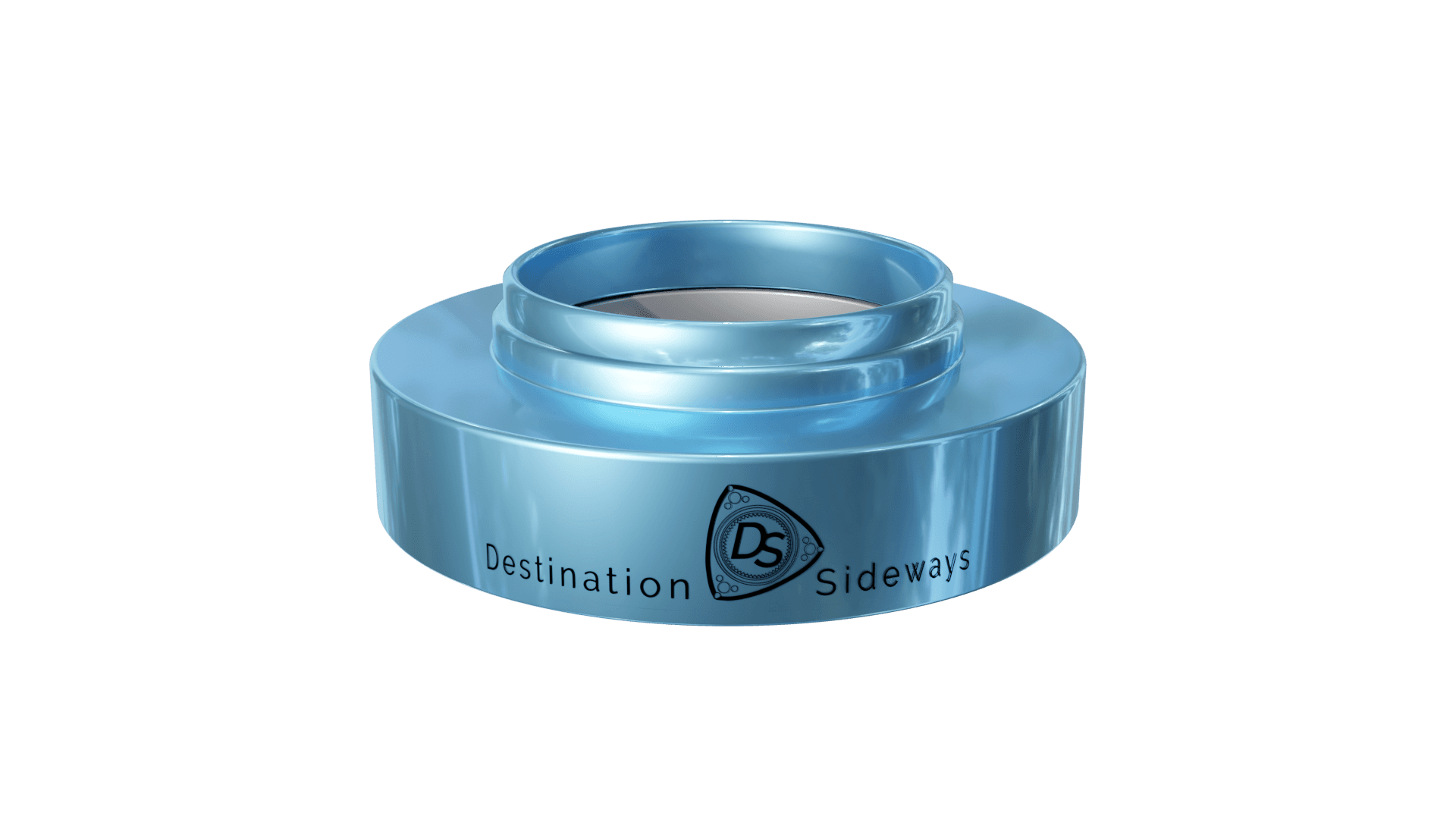

60 mm Radial Adapter, V1
Radialbearings.
A radial bearing that sits between a coilover spring and its lower perch, so the spring turns on a bearing instead of grinding on the perch. Made by Destination Sideways.

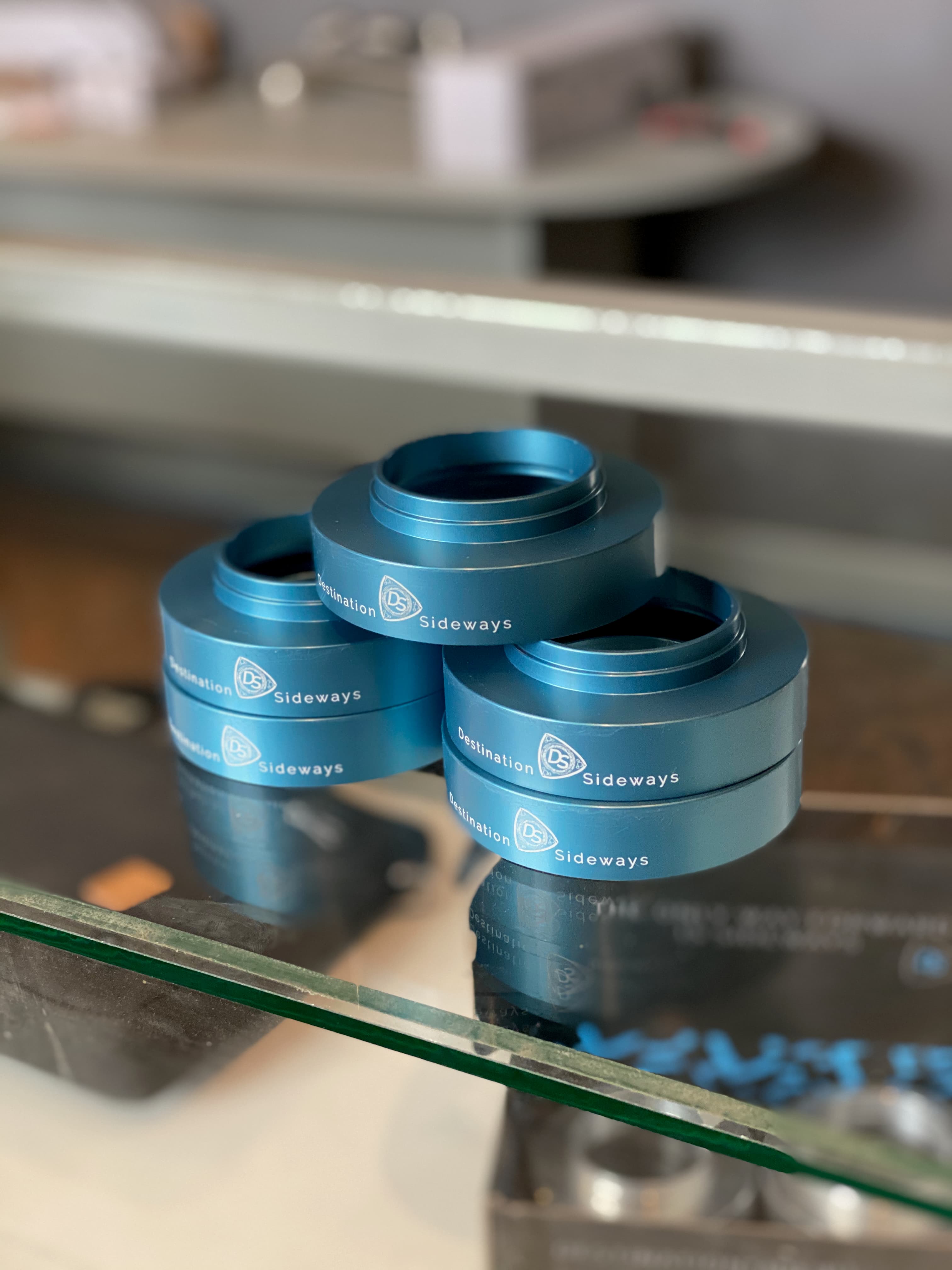

V1 sets from the original run are on hand. Ordering is by email while the online shop is closed.
2021 product page figures
- Coilover size
- 60 mm
- Stack height
- 22 mm
- Material
- Anodized 6061-T6 aluminum
What the bearing does
The perch turns. The spring should not.
This schematic shows a strut with a fixed upper spring seat. The lower perch turns with the wheel, while compression asks the coil to rotate. Friction at the seats can wind up the spring until it releases. With the adapter under the spring, the perch turns on a bearing instead. Motion is exaggerated to show the mechanism.
Steering
Steering
V1 sets on hand
Ask about a set.
Online ordering is not open yet. A limited number of V1 sets from the original run are on hand. Email the coilover brand and model and the vehicle, and we will tell you whether a set fits and whether one is available.
Tech
Where the bearing sits.

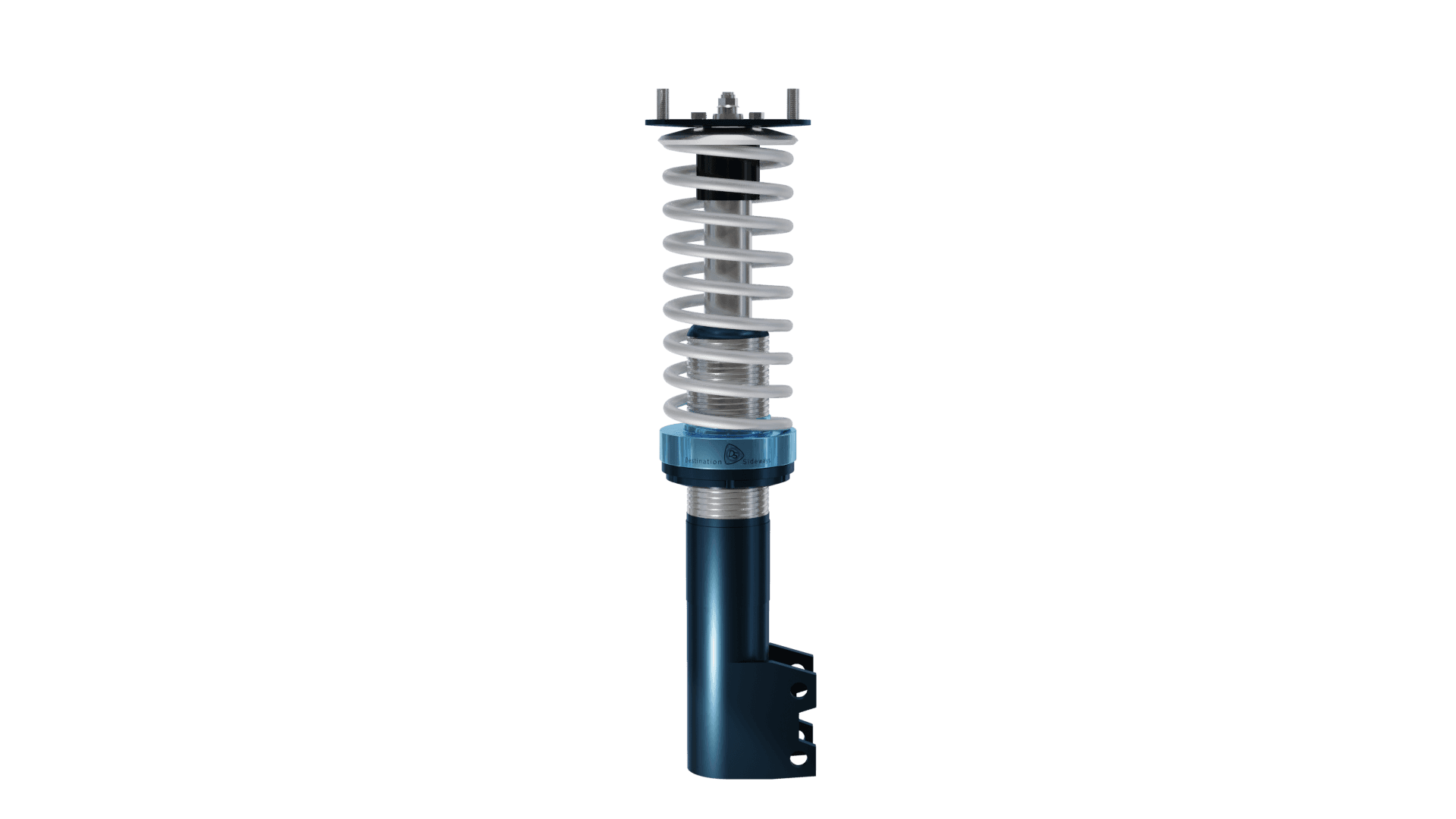

At the bottom of the spring, between the spring and the coilover’s adjustable lower perch. The tech page has the V1 photos, the drawings and the figures from the original product page.
About
A small company from Bend, Oregon.
Destination Sideways started with the 60 mm Radial Adapter, a radial bearing for coilover springs. Everything on this site is V1. A V2 is in development.
